WiMAX IEEE 802.16e Tranceiver
System Overview
The transceiver is designed to be used together with an RF tuner, and ADC/DAC converters. The system has internal state machine to control the operation, and can be externally configured via the SPI interface.
Features
- WiMAX IEEE 802.16e compliant.
- OFDMA 128, 512, 1024, 2048 FFT sizes
- Supports BPSK, QPSK, QAM16, QAM64
- Error Correction: Convolutional Code (CC)
- Efficient and customizable FFT/IFFT Core
- Synchronization system capable of all forms of synchronization (time and frequency)
- Efficient and customizable Robust Channel Estimation algorithm
- Supports IF input
- SPI port interface
- Can be tailored to customer needs
Functional Description
This design is a Mobile WiMAX baseband transceiver core for Mobile station, supplied as a portable and synthesizable Verilog-2001 IP. The system was designed to be used in conjunction with a standard RF tuner. The operation of the transceiver is automated by a master finite state machine.

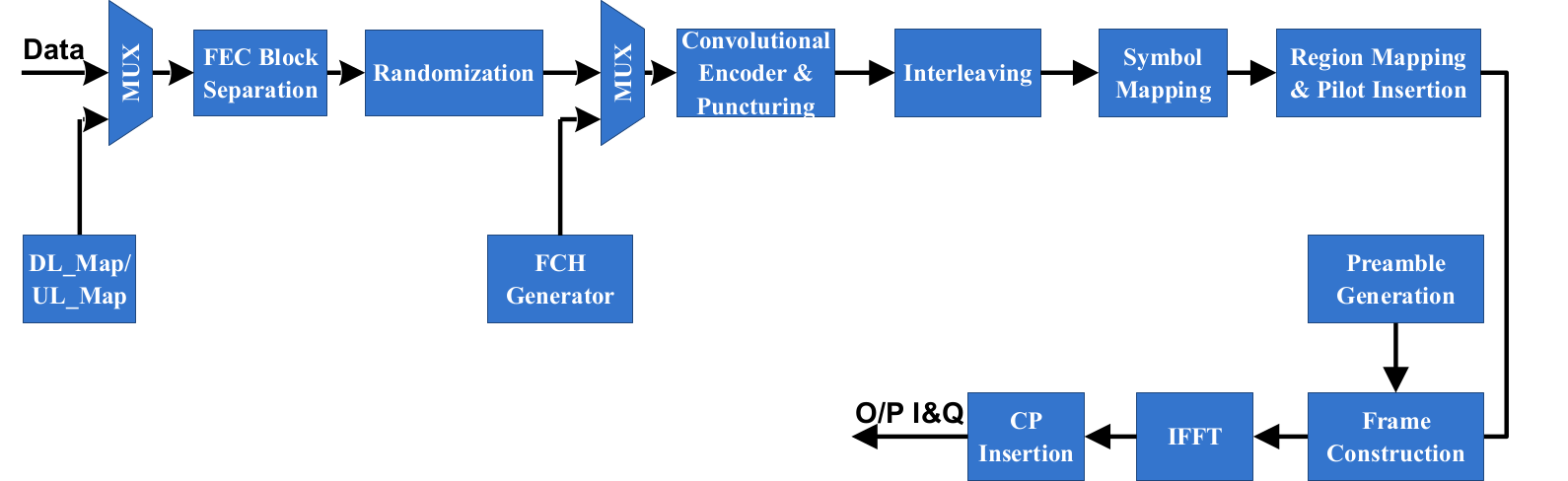

The transmitter block diagram is shown in Figure 1. The design interfaces to an external Digital to Analog converter (DAC), which transmits the analog signal to the external tuner.

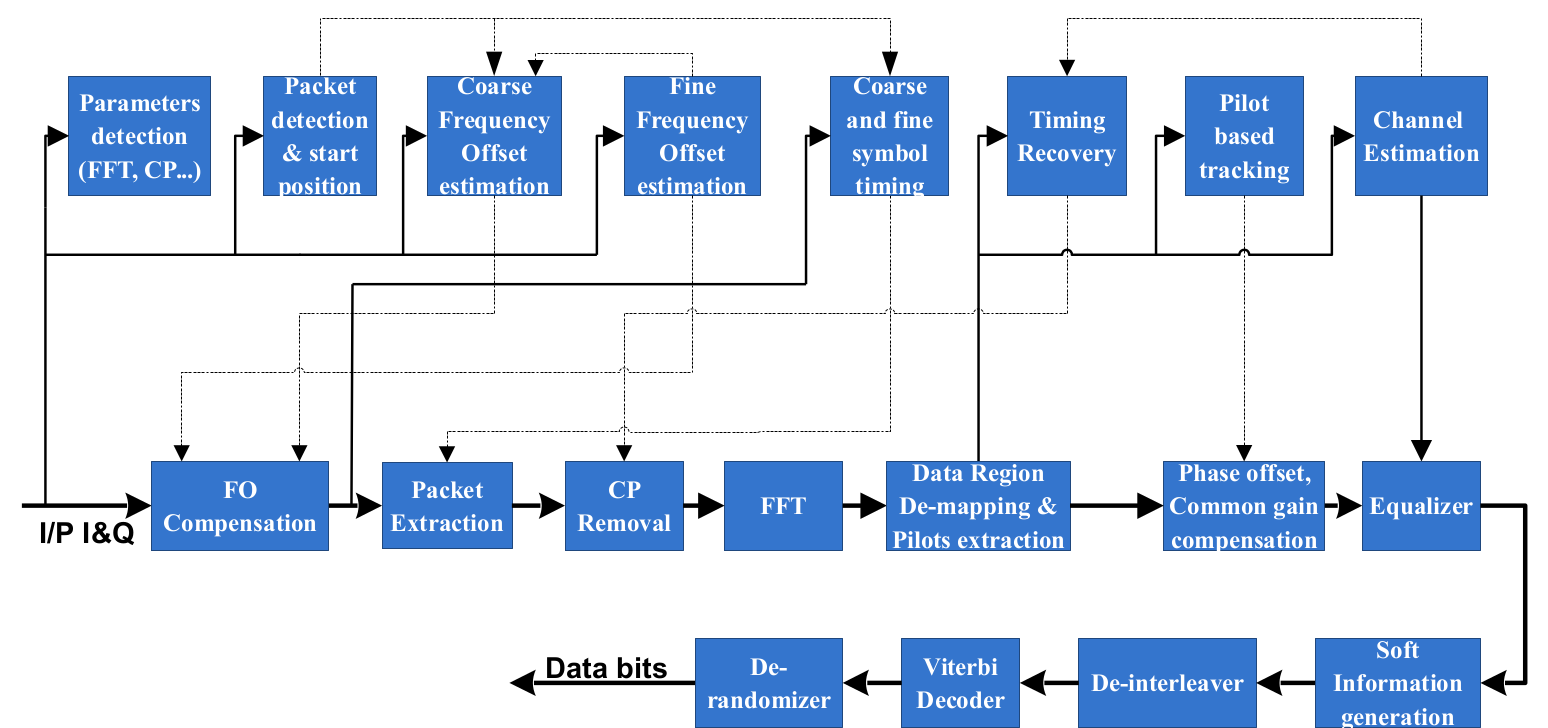

The receiver block diagram is shown in Figure 2. The design interfaces to an external Analog to Digital converter (ADC), which receives the analog signal from the external tuner.
